Solid tapered square nozzle

Solid tapered square nozzle-Shanghai Feizhuo Spray System Co.,Ltd

Application technology consultation:  Feizhuo@feizhuo.net

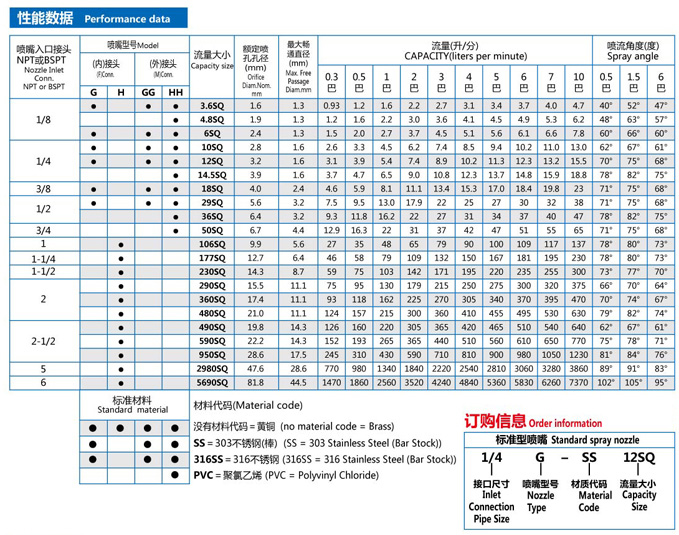

Solid cone nozzle square series is divided into four kinds:
G - SQ removable cap and leaf 1/8 ", 1/2 "NPT or BSPT (inside)
GG - SQ removable cap and blade 1/8 ", 1/2 "NPT or BSPT (outside)
H - SQ overall 1 "NPT or BSPT (within) bar bar 1 1/4" - 6 "NPT or BSPT (inside)
HH - SQ overall 1/8 "- 3/4" NPT or BSPT (outside)
Design features
G - SQ/H - SQ series nozzle can produce solid spray cone shape, is the feature of the injection area is square, jet Angle of 40 ° to 105 °.
G - SQ/H - SQ series nozzle can in a wide range of pressure and flow rate under the uniform distribution, spray droplet size for medium to large.The uniformity of spray distribution is derived from the unique blade design, big and smooth flow and advanced spray flow control characteristics.This nozzle is very suitable for installation in rectangular spray area covered by requirements completely.
G - SQ and GG - SQ series nozzle has a removable cap and blade, not the nozzle body must be removed from the header or branch pipe is removable and inspect these parts.
H - SQ series nozzle with removable blade.
The general application
Low cooling and quenching
Low product cleaning
Low air and gas scrubber
Low cleaner
Low liquid scrubber
Low dust control
Low fire

1
