Position: 首頁 > FEIZHUO ENGLISH > PRODUCTS > Full cone nozzle

Solid cone nozzle narrow Angle of 30 °

Solid cone nozzle narrow Angle of 30 -Shanghai Feizhuo Spray System Co.,Ltd

Application technology consultation:  Feizhuo@feizhuo.net

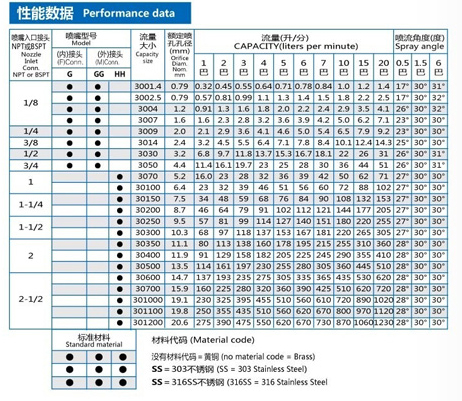

G30 removable cap and leaf 1/8 ", 1/2 "NPT or BSPT (F)
GG30 removable cap and leaf 1/8 ", 1/2 "NPT or BSPT (M)
H30 overall 3/4 "- 5" NPT or BSPT (F)
Design features
Narrow Angle of 30 ° series solid cone nozzle can produce solid spray cone shape, is the feature of the injection area is circular.Narrow jet Angle of 30 ° series, nozzle are uniform distribution, spray with thicker grain, 15 ° series of nozzle, the impact of the per unit area is significantly higher than the same flow rate under the wide Angle of solid cone nozzle.
G with narrow Angle of 30 ° GG type series solid cone nozzle has a removable cap and blade.
H type with HH narrow Angle of 30 ° series solid cone nozzle with removable blade.
1/8 of an inch - 1-1/4 inch size of the nozzle is made of bar, 1-1/2 inch and larger nozzle is cast.
Narrow Angle of 30 ° series solid cone nozzle is made of fine craft, has realized the accurate specifications, to ensure the best performance.The uniform spray distribution is derived from the unique, novel blade design, big flow channel and flow control characteristics.
The general application
Low turbulence on depth of penetration and/or injection to ensure thorough washing products for cleaning
Low to the superheated steam cooling
Low jet pipe inside of cooling or cleaning
